A Practical Guide for Insulating Steam Systems

Steam traps play a critical role in every steam system, yet when it comes to insulation, they are often misunderstood and it creates a lot of confusion.

While most components in a steam system benefit greatly from insulation, steam traps need a more careful, type-specific approach.

What Does a Steam Trap Actually Do?

Steam traps are designed to:

• Remove condensate
• Prevent live steam loss
• Maintain system efficiency

They operate based on different principles, depending on the type:

• Mechanical (float, inverted bucket)
• Thermostatic (temperature-based)
• Thermodynamic (pressure-based)

Understanding this is key to deciding whether insulation is appropriate.

Can Steam Traps Be Insulated?

The short answer:

Some can, some should not be fully insulated and some should not be insulated at all.

Unlike pipes or valves, certain steam traps rely on heat dissipation to the surrounding environment.

Trap Types and Steam Trap Insulation Recommendations

Mechanical Traps

• Continuous discharge
• Large surface area = high heat loss

Generally suitable for insulation
✔ Good energy savings potential
✔ Minimal impact on operation

Thermodynamic (Disc) Traps

• Operate based on pressure and flash steam
• Sensitive to cooling

Generally, NOT recommended to fully insulate the trap body
✔ Cooling is part of the operating cycle
✔ Over-insulation may affect performance

In practice:

• Leave trap body exposed
• Insulate surrounding piping and components

Thermostatic Traps

• Operate based on temperature difference
• Require condensate cooling to function

Generally, NOT recommended to fully insulate
✔ Insulation can delay opening
✔ May affect discharge behavior

In practice:

• Avoid full insulation
• Follow manufacturer recommendations

What Should Be Insulated in a Trap Station?

Even when the trap itself is not insulated, there is still significant energy-saving potential with removable-reusable blanket insulation:

✔ Upstream and downstream piping
✔ Valves and bypass lines
✔ Strainers and separators
✔ Flanges and fittings

These are often major sources of heat loss.

A Practical Solution: Lightweight Protective Covers for Steam Traps

In many cases, the goal is not energy savings, but personnel safety.

For trap types where full insulation is not recommended, a different approach can be used:

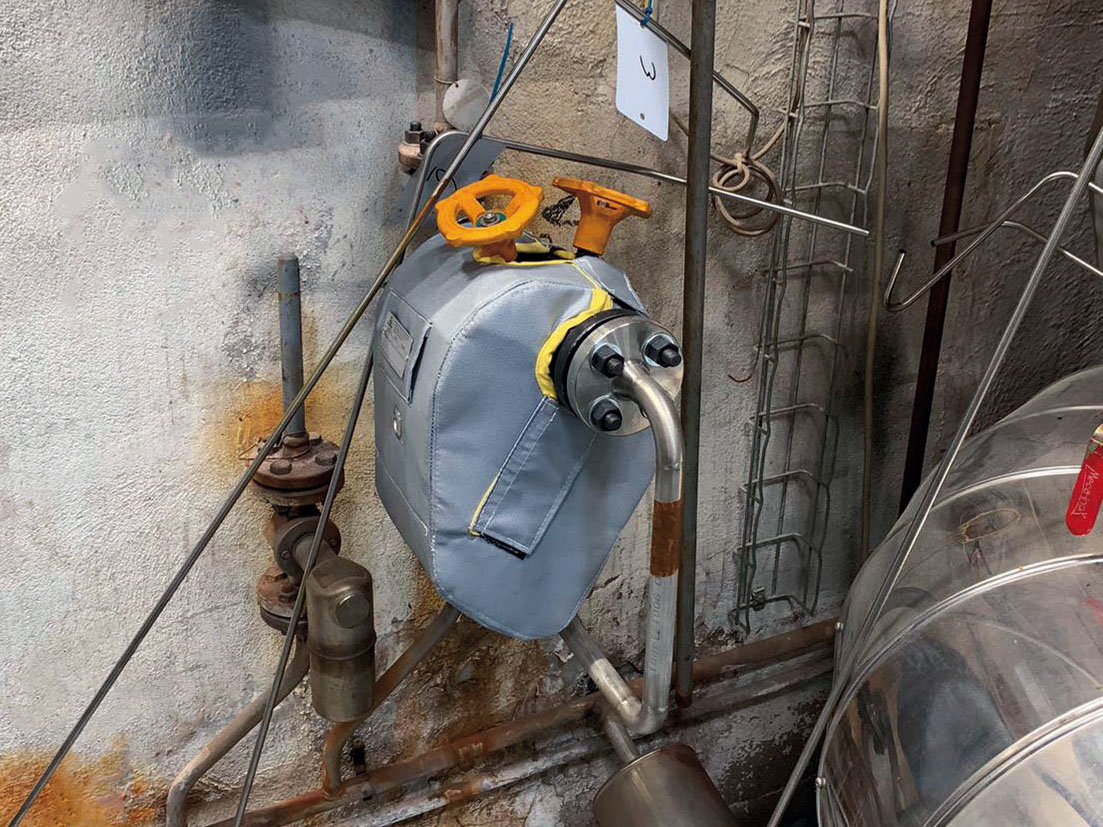

Lightweight, removable protective covers

Key characteristics:

• Thin insulation layer (e.g. ~6 mm)
• Compact, box-type design
• Removable and reusable

Benefits:

• Reduces surface temperature → improves safety
• Helps comply with safety standards

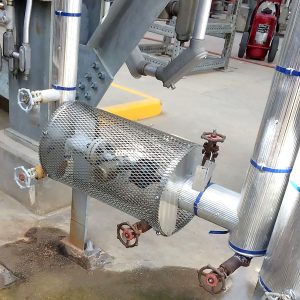

• Can replace traditional metal safety cages
• Maintains sufficient heat dissipation → does not interfere with operation

Steam Trap Maintenance Matters: Easy Inspection Without Removal

Steam traps require regular inspection using:

• Ultrasonic testing
• Temperature measurement
• Contact probes

One common concern with insulation is: “Will we need to remove it every time we test the trap?”

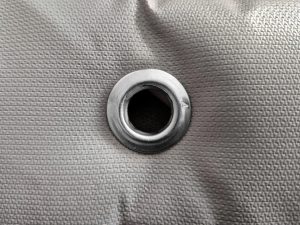

Modern removable covers can address this with: Integrated stainless steel testing grommets

This allows:

• Direct probe access
• No need to remove the cover
• Faster and more consistent inspections

Result:

• Covers stay in place
• Maintenance becomes easier
• System performance remains visible

Why Removable Insulation Matters

In practice:

• Insulation is often removed for maintenance and not reinstalled
• Or reinstalled incorrectly

This leads to:

• Lost energy savings
• Increased safety risks

A well-designed removable solution ensures:

• Consistent use
• Easy access
• Long-term performance

Conclusion

✔ Steam traps should not be treated like standard piping when it comes to insulation
✔ Some trap types benefit from insulation, others require exposure to ambient conditions
✔ The key is a type-specific, engineered approach

The question is not simply whether to insulate steam traps, but how to balance energy efficiency, safety, and proper operation.

Final Thought

While full insulation is not always appropriate for every trap type, modern lightweight protective solutions allow you to:

• Improve safety
• Maintain accessibility
• Support efficient operation

— all without compromising the function of the steam trap.
